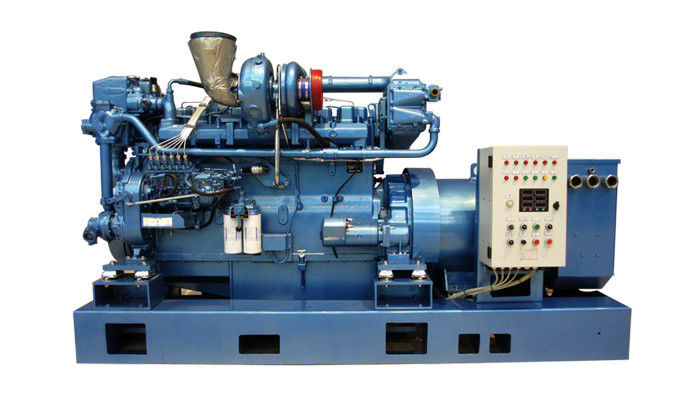

M Series Marine Diesel Generator Sets Compact Structure High Power

Widely used in inland and coastal waters, offshore market carriers, fishing boats, official boats, ships and other projects

Has a good technical performance indicators;

Compact, high power per liter;

DC24V DC insulation systems;

Non-stop to replace the fuel filter and oil filter;

Bronze gear-type sea water pump;

Fully meet the requirements of the "steel marine vessel construction norms", "steel ship classification rules", GB13032 "marine diesel generator sets, etc.;

Rated power: 400-800kW

Rated voltage: 400V;

The rated speed / rated frequency: 1500rpm/50Hz;

Rated power factor: 0.8 (lagging);

number of cylinders / Bore / Stroke: 6/150*150mm ---12V/150*185mm;

Displacement: 15.9L----39.2L;

Cooling: Dual circulation water cooling;

The start-up mode: DC12V electric motor;

Number of phases and connection: three-phase four-wire, star connection;

Excitation / regulator: Brushless / AVR automatically;

Diesel fuel consumption economy: ≤ 198g/kW · h;

Oil consumption: ≤ 1.0g/kW · h;
