YZ-WHM6160 Series Marine Diesel Generators With Electric Starting Method

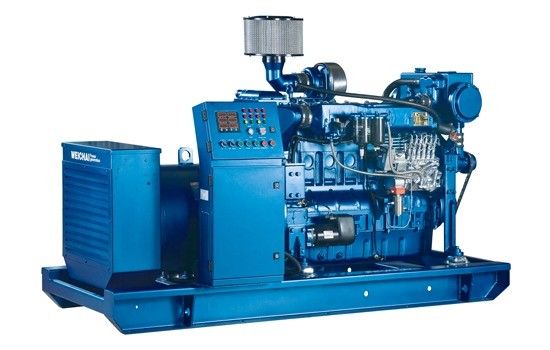

Large Image : YZ-WHM6160 Series Marine Diesel Generators With Electric Starting Method

Product Details:

Place of Origin:	China
Brand Name:	Weichai

Payment & Shipping Terms:

Minimum Order Quantity:	1piece
Price:	USD+100-100000+1 piece
Packaging Details:	Unpacked or in wooden cases for export according to the products
Delivery Time:	7-30days
Payment Terms:	L/C ，D/P , T/T ，Western Union ，MoneyGram ，Paypal
Supply Ability:	100 pieces per 30days

Contact Now

YZ-WHM6160 Series Marine Diesel Generators With Electric Starting Method

Description

Name:	Weichai Generator Sets	Feature:	High Reliability, Low Emissions, Low Noise
Key Selling Points:	High Performance	Emission Standards:	State IV
Cooling Method:	Closed Fan-radiator Cooling	Speed Governor:	ECU
Speed:	1500r/min	No. Of Cylinder:	4/6

MODEL	Prime KW	Starting Method	Governor Type	High pressure pipe	50HZ		60HZ
MODEL	Prime KW	Starting Method	Governor Type	High pressure pipe	Speed r/min	Engine Model	Speed r/min	Engine Model
CCFJ161J-W5	16	electric	electric	anti-explosion	1500	WP2.3CD25E200	-	-
CCFJ20J-W5	20	electric	electric	anti-explosion	1500	WP2.3CD33E200	1800	WP2.3CD30E201
CCFJ24J-W5	24	electric	electric	anti-explosion	1500	WP2.3CD33E200	1800	WP2.3CD40E201
CCFJ30J-W5	30	electric	electric	anti-explosion	1500	WP2.3CD40E200	1800	WP2.3CD40E201
CCFJ40J-WZ	40	electric	mechanical	common	1500	WP4CD66E200	1800	WP4CD66E201
CCFJ40J-WZ	40	electric	electric	common	1500	WP4CD66E200	1800	WP4CD66E201
CCFJ40J-WZ	40	electric	mechanical	anti-explosion	1500	WP4CD66E200	1800	WP4CD66E201
CCFJ40J-WZ	40	electric	electric	anti-explosion	1500	WP4CD66E200	1800	WP4CD66E201
CCFJ50J-WZ	50	electric	mechanical	common	1500	WP4CD66E200	1800	WP4CD66E201
CCFJ50J-WZ	50	electric	electric	common	1500	WP4CD66E200	1800	WP4CD66E201
CCFJ50J-WZ	50	electric	mechanical	anti-explosion	1500	WP4CD66E200	1800	WP4CD66E201
CCFJ50J-WZ	50	electric	electric	anti-explosion	1500	WP4CD66E200	1800	WP4CD66E201
CCFJ64J-WZ	64	electric	mechanical	common	1500	WP4CD100E200	1800	WP4CD100E201
CCFJ64J-WZ	64	electric	electric	common	1500	WP4CD100E200	1800	WP4CD100E201
CCFJ64J-WZ	64	electric	mechanical	anti-explosion	1500	WP4CD100E200	1800	WP4CD100E201
CCFJ64J-WZ	64	electric	electric	anti-explosion	1500	WP4CD100E200	1800	WP4CD100E201
CCFJ75J-WZ	75	electric	mechanical	common	1500	WP4CD100E200	1800	WP4CD100E201
CCFJ75J-WZ	75	electric	electric	common	1500	WP4CD100E200	1800	WP4CD100E201
CCFJ75J-WZ	75	electric	mechanical	anti-explosion	1500	WP4CD100E200	1800	WP4CD100E201
CCFJ75J-WZ	75	electric	electric	anti-explosion	1500	WP4CD100E200	1800	WP4CD100E201
CCFJ90J-WZ	90	electric	mechanical	common	1500	WP6CD132E200	1800	WP6CD132E201
CCFJ90J-WZ	90	electric	electric	common	1500	WP6CD132E200	1800	WP6CD132E201
CCFJ90J-WZ	90	electric	mechanical	anti-explosion	1500	WP6CD132E200	1800	WP6CD132E201
CCFJ90J-WZ	90	electric	electric	anti-explosion	1500	WP6CD132E200	1800	WP6CD132E201
CCFJ100J-WZ	100	electric	mechanical	common	1500	WP6CD132E200	1800	WP6CD132E201
CCFJ100J-WZ	100	electric	electric	common	1500	WP6CD132E200	1800	WP6CD132E201
CCFJ100J-WZ	100	electric	mechanical	anti-explosion	1500	WP6CD132E200	1800	WP6CD132E201
CCFJ100J-WZ	100	electric	electric	anti-explosion	1500	WP6CD132E200	1800	WP6CD132E201
CCFJ120J-WZ	120	electric	mechanical	common	1500	WP6CD152E200	1800	WP6CD158E201
CCFJ120J-WZ	120	electric	electric	common	1500	WP6CD152E200	1800	WP6CD158E201
CCFJ120J-WZ	120	electric	mechanical	anti-explosion	1500	WP6CD152E200	1800	WP6CD158E201
CCFJ120J-WZ	120	electric	electric	anti-explosion	1500	WP6CD152E200	1800	WP6CD158E201
CCFJ150J-WY	150	electric	electric	anti-explosion	1500	WP10CD200E200	1800	WP10CD200E201
CCFJ180J-WY	180	electric	electric	anti-explosion	1500	WP10CD238E200	1800	WP10CD238E201
CCFJ200J-WY	200	electric	electric	anti-explosion	1500	WP10CD264E200	1800	WP10CD264E201
CCFJ250J-WY	250	electric	electric	anti-explosion	1500	WP12CD317E200	1800	WP12CD317E201
CCFJ300J-WY	300	electric	electric	anti-explosion	1500	WP13CD385E200	1800	WP13CD385E201
CCFJ350J-WX	350	electric	electric	anti-explosion	1500	WHM6160D426-5	-	-
CCFJ400J-WX	400	electric	electric	anti-explosion	1500	WHM6160D456-5	-	-
CCFJ500J-WX	500	electric	electric	anti-explosion	1500	WHM6160MD556-5	-	-

Widely used in inland and coastal waters, offshore market carriers, fishing boats

Field official boats, ships and other projects;

Has a good technical performance indicators;

Compact, high power per liter;

DC24V DC insulation systems;

Non-stop to replace the fuel filter;

Fully meet the requirements of the "steel marine vessel construction norms", "steel ship classification rules", GB13032 "marine diesel generator sets, etc.;

Rated power: 16-500kW

Rated voltage: 400V;

The rated speed / rated frequency: 1500rpm/50Hz;

Rated power factor: 0.8 (lagging);

umber of cylinders / Bore / Stroke: 4/89*92mm --6/160*200mm;

Displacement 2.3L - 24L;

Cooling: Dual circulation water cooling;

The start-up mode: DC12V electric motor;

Lnumber of phases and connection: three-phase four-wire, star connection;

Excitation / regulator: Brushless / AVR automatically;

Diesel fuel consumption economy: ≤ 197g/kW · h;

Oil consumption: ≤ 1.0g/kW · h;
