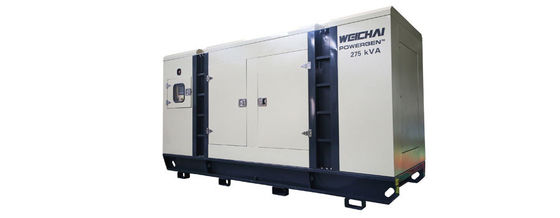

WP4-WP13 Series Land Based Diesel Generators Closed Type 400V

Large Image : WP4-WP13 Series Land Based Diesel Generators Closed Type 400V

Product Details:

Place of Origin:	China
Brand Name:	Weichai

Payment & Shipping Terms:

Minimum Order Quantity:	1piece
Price:	USD+100-100000+1 piece
Packaging Details:	Unpacked or in wooden cases for export according to the products
Delivery Time:	7-30days
Payment Terms:	L/C ，D/P , T/T ，Western Union ，MoneyGram ，Paypal
Supply Ability:	100 pieces per 30days

Contact Now

WP4-WP13 Series Land Based Diesel Generators Closed Type 400V

Description

Name:	Weichai Generator Sets	Feature:	High Reliability, Low Emissions, Low Noise
Key Selling Points:	High Performance	Emission Standards:	State IV
Cooling Method:	Closed Fan-radiator Cooling	Speed Governor:	ECU
Speed:	1500r/min	No. Of Cylinder:	4/6

MODEL	STANDBY POWER		PRIME POWER		FUEL CONSUMPTION@75% LOAD	ENGINE
	STANDBY POWER		PRIME POWER		FUEL CONSUMPTION@75% LOAD	MODEL	RATED Power	DISPLACEMENT	GOVERNOR
	KVA	KW	KVA	KW	L/h	MODEL	KW	L	GOVERNOR
WPG55L9	55	44	50	40	8	WP4D66E200	60	4.5	Mech/Elec
WPG70L9	70	55	63	50	11	WP4D66E200	60	4.5	Mech/Elec
WPG88L9	88	70	80	64	13	WP4D81E200	74	4.5	Mech/Elec
WPG110L9	110	88	100	80	16	WP4D100E200	90	4.5	Mech/Elec
WPG138L9	138	110	125	100	21	WP6D140E200	128	6.75	Mech/Elec
WPG150L9	150	120	135	108	22	WP6D140E200	128	6.75	Mech/Elec
WPG170L9	170	136	155	124	25	WP6D152E200	138	6.75	Mech/Elec
WPG220L8	220	176	200	160	31	WP10D200E200	182	9.726	Mech/Elec
WPG250L8	250	200	225	180	35	WP10D238E200	216	9.726	Mech/Elec
WPG275L8	275	220	250	200	39	WP10D264E200	240	9.726	Mech/Elec
WPG350L8	350	280	320	256	51	WP10D320E200	291	9.726	Mech/Elec
WPG400L8	400	320	360	288	56	WP13D385E200	350	12.54	Mech/Elec
WPG440L8	440	352	400	320	62	WP13D405E200	368	12.54	Mech/Elec

Widely used in coal mines, oil fields, wineries, sewage treatment plants, agricultural biogas power generation.

Has a good technical performance indicators;

The economy is good, cost-effective;

Safety and environmental protection, pollution;

Advanced ECU speed control mode;

Rated power: 40-320KW

Rated voltage: 400V;

The rated speed / rated frequency: 1500rpm/50Hz;

Rated power factor: 0.8 (lagging);

Number of cylinders / Bore / Stroke 4/105*130mm --- 6/127*165mm

Displacement:4.5L- 12.54L

Cooling: Closed radiator fan forced cooling;

The start-up mode: DC24V electric motor;

Number of phases and connection: three-phase four-wire, star connection;

Excitation / regulator: Brushless / AVR automatically;

Diesel economic gas consumption rate: ≤ 216g/kW · h;

Oil consumption: ≤ 1.1g/kW · h;
