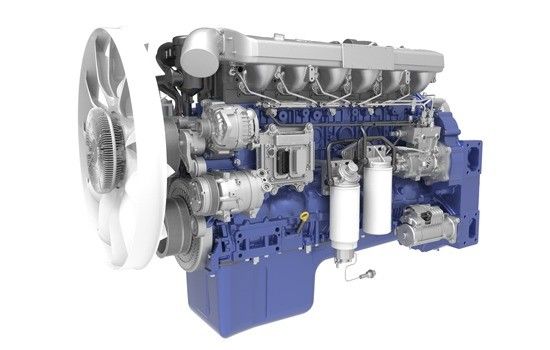

WP13 Series Weichai Engines For Construction Machinery 10T Loaders



Product portfolio

Product advantages

• A variety of optional PTOs are available and maximum torque is 1,000Nm. Flange output: 1:1/1:1.16/1:1.46; SAE internal spline output: 9 teeth/11 teeth/13 teeth
• Intake heating function satisfies the requirements for starting up at -35°C.
• The front wheel system is tensioned automatically, the service life of the belt is 10,000h, and the 210/272/410mm high fan drive is optional.
• The frame type main bearing structure and strong engine block design ensure the reliability of diesel engine.
• The diesel engine and its accessories are arranged succinctly, and one cylinder head is provided for one cylinder, ensuring the convenience of maintenance.
• The engine satisfies the plateau power performance requirements when running at more than 4,000m above sea level.

Reliable

• High reliability design guarantees the service life of 30,000h.

Environmental adaptability

• Temperature -35℃～50℃ ,altitude below 4000m.
